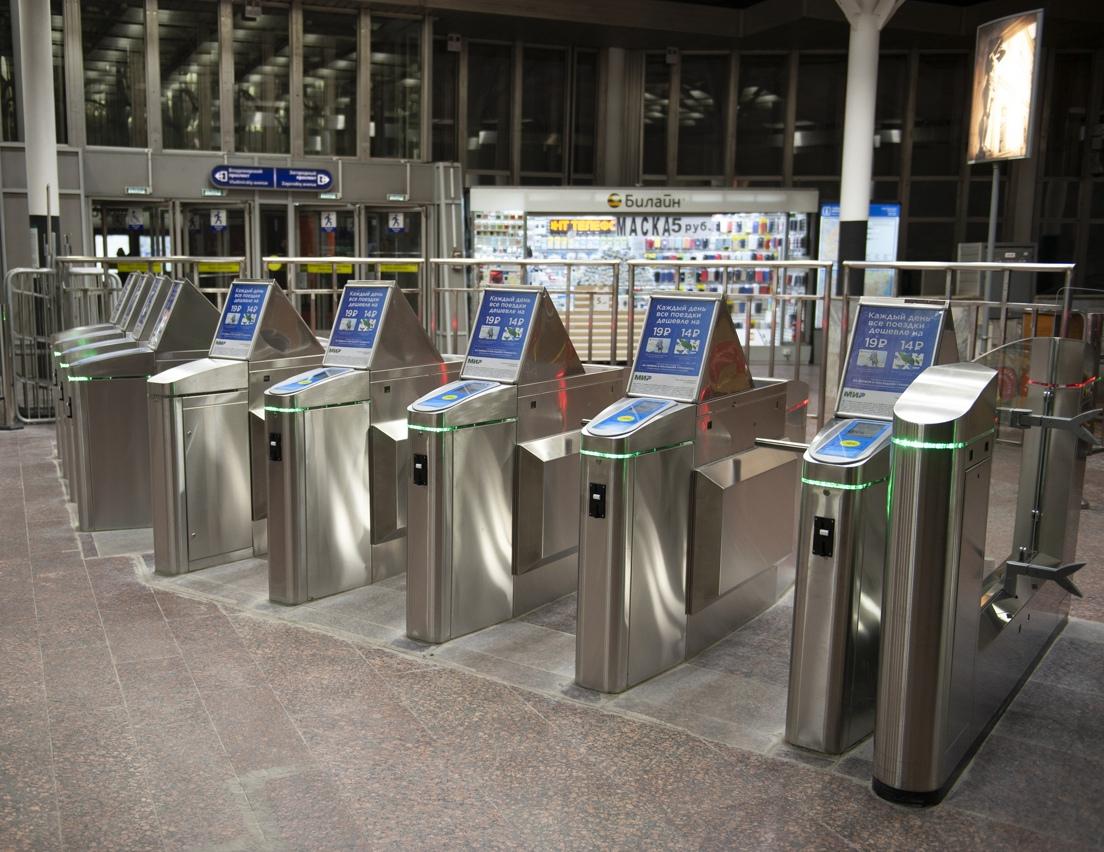

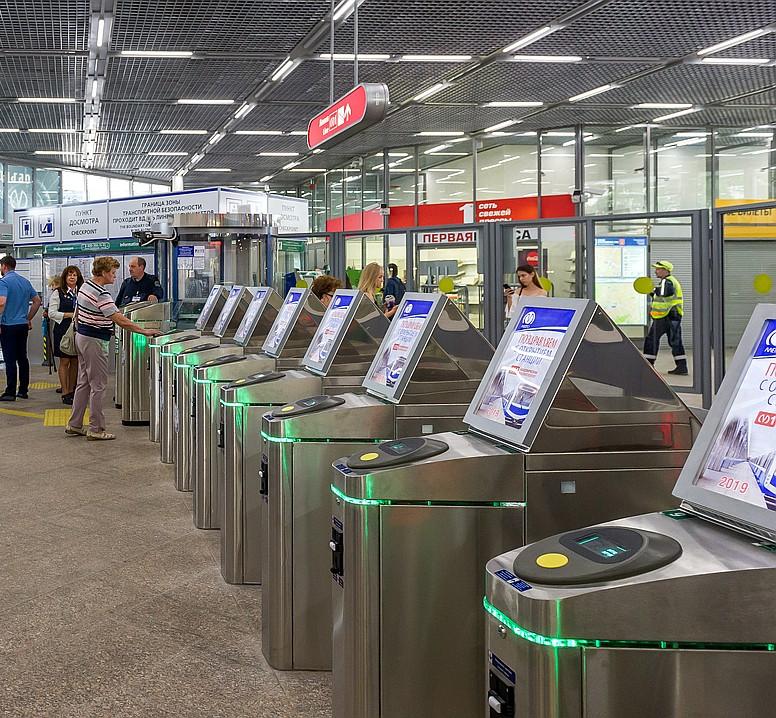

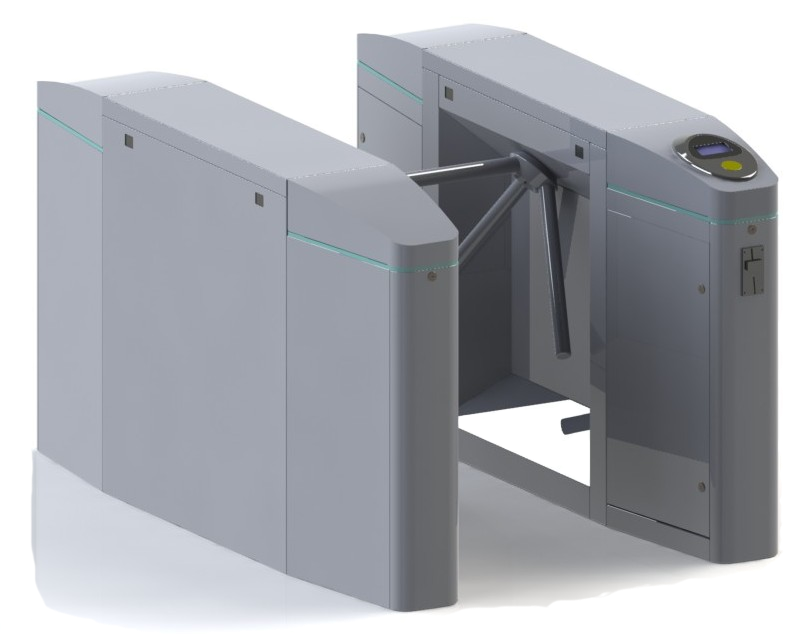

The UT-96m tripod turnstile is designed for passenger access control to the paid areas in public transport. As an access control gate it can be equipped with card reader (magnetic strip, smart contactless cards) and / or with coin acceptor for coins, tokens or smart tokens as well as barcode reader. With passenger safety as a top priority it is fitted with multiple anti panic solutions.
- gate movement management
- recognition of successful passenger passage through the gate
- prevention of unpaid access to the fare controlled passenger area
- passage direction control
- passenger entry to the fare controlled area only mode
- alarm for unpaid access to the fare controlled area
- bidirectional passage in/out of fare controlled area
- passage direction pictogram
- passage open / closed pictogram
- alarm for unauthorised access to the core elements inside the gate
- well adapted to any operational environments with protection level from IP 20 to IP 44
- Extra heating system (suitable for operation in temperatures ranging from –45 C to 40 C)
- Passenger counter
- Special alarm module for unauthorised access notification
- Electromechanical and electronic counters (to count passages by various fare media types)
- Anti-panic mode remotely controlled
- A control hub for multi gate management
Dimensions
1800х1000х300 mm
Passage width
500 mm
Weigh
150 kg
Power supply
(220 +22 -33) v
Power consumption:
idle mode
maximum
- 40 Wt
- 200 Wt
Throughput
no less than 1200 people per hour
Operational range
From –5 C (-45 C with optional heater) to 40 C
Humidity
Up to 95% and 25 Celsius
Atmospheric pressure
From 84 to 106,7 hPa
Operational hours
24 hours
Reverse mode
Yes
Passage direction pictogram
Yes
Passage open / closed pictogram
Yes
Closed door mode
Yes
Open door mode
Yes
Autonomous mode
Yes
Controlled using RS 232/RS 485 protocols
Yes
Automatic emergency (anti-panic) mode
Yes
Fare media options:
Manual control
Magnetic cards
Smart cards (including contactless)
Barcodes
Tokens (coins)
Smart tokens
PayWave / PayPass
Yes
