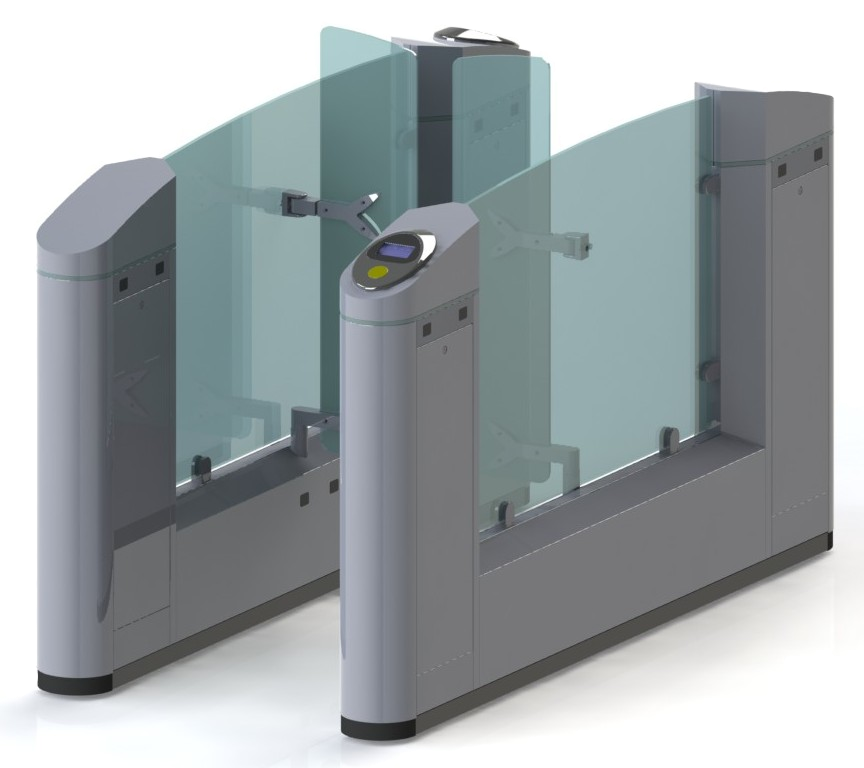

The slim pivoting door gate UT-2000.9 consists of two cabinets, and is suitable for securing access to the fare controlled areas in public transport. UT-2000.9 is fully reversible and can operate in both directions of passage. Unique design features make this gate easily adaptable to various environments with significant space constraints. UT-2000.9 can be stretched up to 2000mm and have up to 1800mm passage width.
- gate movement management
- gate length and passage width are flexible
- recognition of successful passage through the gate
- prevention of unpaid access to the fare controlled passenger area
- passenger entry to the fare controlled area only mode
- bidirectional passage in/out of fare controlled area
- passage direction pictogram
- passage open / closed pictogram
- alarm for unauthorised access to the core elements inside the gate
- well adapted to any operational environments with protection level from IP 20 to IP 44
- Extra heating system (suitable for operation in temperatures ranging from –45 C to 40 C)
- Passenger counter
- Universal multi fare media reader
- Special alarm module for unauthorised access notification
- Electromechanical and electronic counters (to count passages by various fare media types)
- Anti-panic mode remotely controlled
- A control hub for multi gate management
Dimensions
2200х1240х200 mm
Passage width
500 – 1200 mm
Weight
190 kg
Power supply
(220 +22 -33) V
Power consumption:
idle mode
maximum
- 140 Wt
- 250 Wt
Throughput, no less than
1200 people / hour
Operational temperature
From –5 C (-45 C with optional heating unit) to 40C
Humidity
Up to 95% with 25 C
Atmospheric pressure
From 84 to 106,7 hPa
Uninterrupted operation
24 hours
Reverse mode
Yes
Passage direction pictogram
Yes
Passage open / closed pictogram
Yes
Closed door mode
Yes
Open door mode
Yes
Autonomous mode
Yes
Managed through RS 232/RS 485
Yes
Anti-panic mode
Yes
Fare media options:
Manual control
Magnetic cards
Smart cards (contact / contactless)
Barcodes
Tokens
Smart tokens
PayPass / PayWave
Yes
