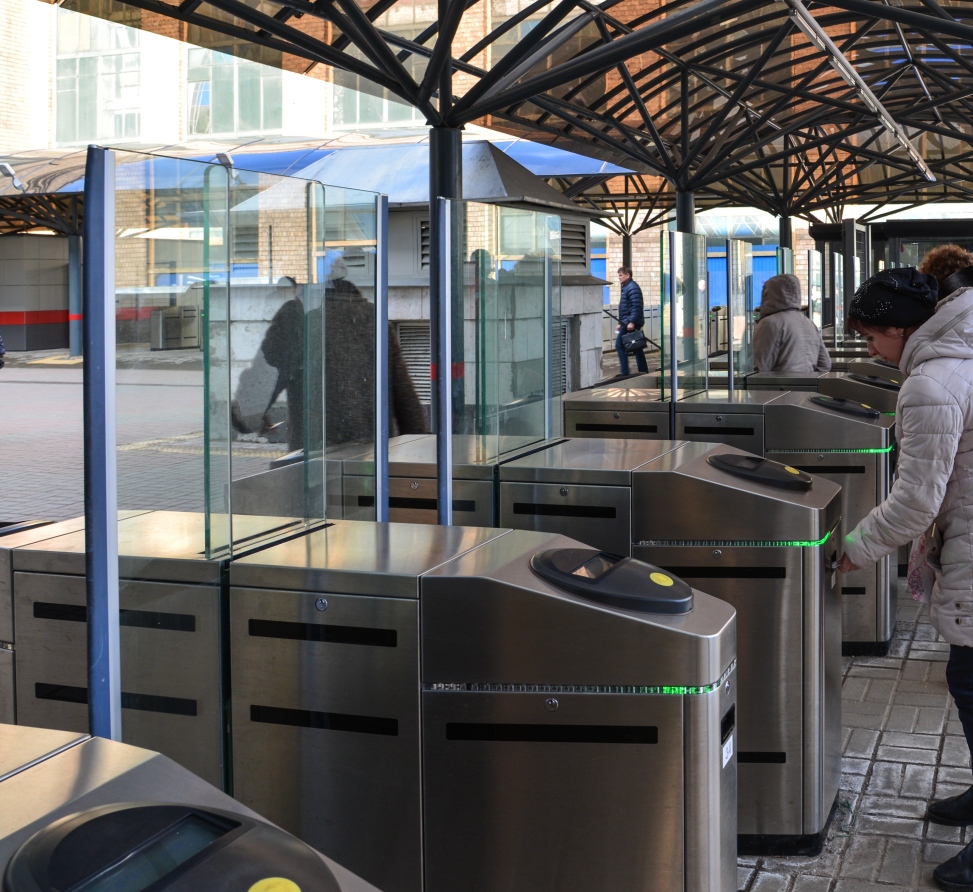

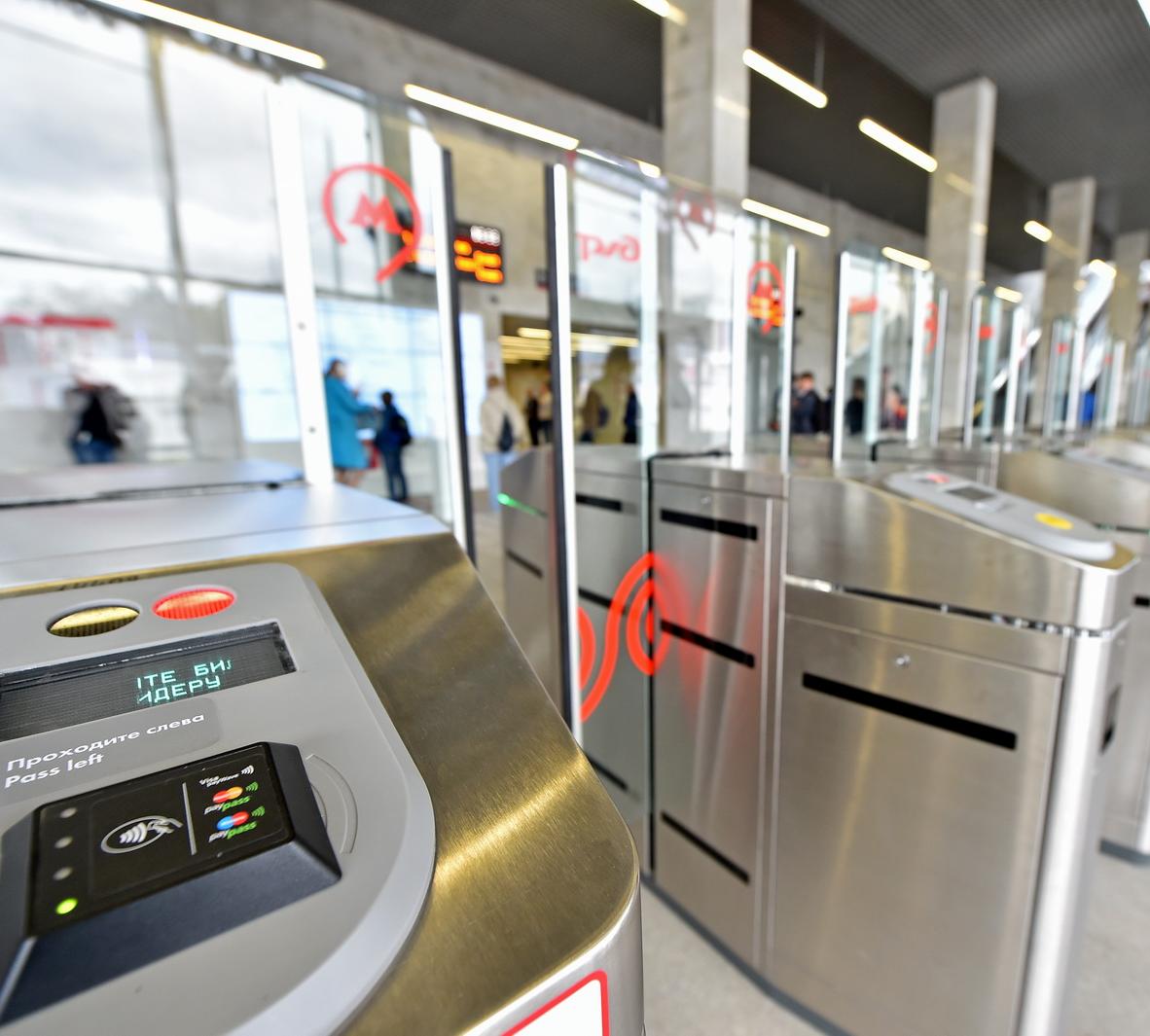

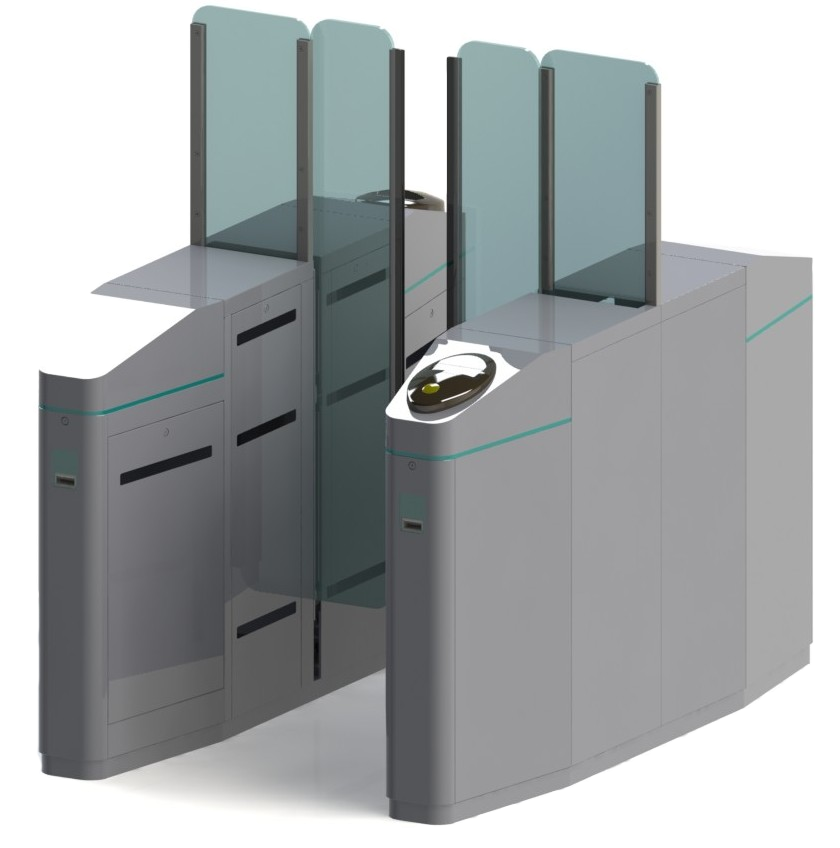

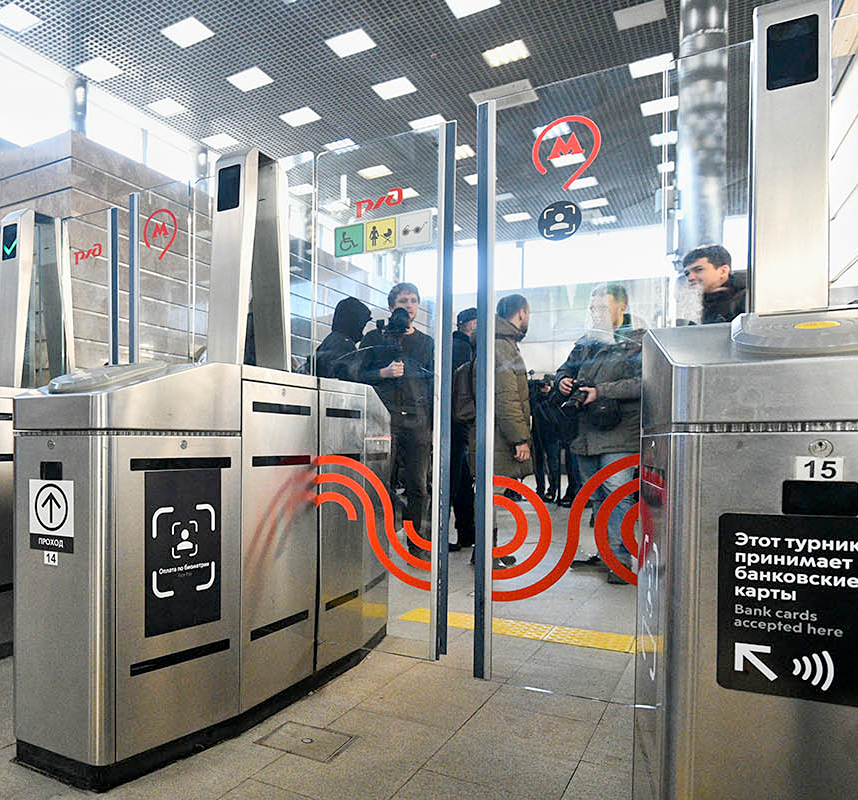

The Retractable door gate UT-2012 consists of two cabinets, and is suitable for securing access to the fare controlled areas in public transport. UT-2012 is fully reversible and can operate in both directions of passage. As an access control gate it can be equipped with card reader (smart contactless cards) and / or with coin acceptor for tokens or smart tokens as well as barcode reader. Passenger safety is guaranteed by multiple sensors.
- safe and convenient passage (width from 600 to 800 mm)
- simple integration with any ticketing system
- well adapted to any environmental conditions with protection level from IP 20 to IP 44
- useful life span at least 10 years
- 5 000 000 cycles before first failure
- gate movement management
- recognition of successful passage through the gate
- prevention of unpaid access to the fare controlled passenger area
- passage direction control
- passenger entry to the fare controlled area only mode
- bidirectional passage in/out of fare controlled area
- passage direction pictogram
- passage open / closed pictogram
- alarm for unauthorised access to the core elements inside the gate
- well adapted to any operational environments with protection level from IP 20 to IP 44
- autonomous mode or as part of automated fare collection system
- interfaces to work with almost any fare media
- extra heating system (suitable for operation in temperatures ranging from –45 C to 40 C)
- anti-panic mode remotely controlled
- electromechanical and electronic counters (to count passages by various fare media types)
- various passage indication options
- alarm modules for various types of unauthorised activity
Dimensions
1800x1100х330 mm
Passage width
600 – 800 mm
Weight
370 kg
Power supply
(220 +22 -33) VDC
Power consumption:
idle mode
maximum
- 140 Wt
- 500 Wt
Throughput no less than
1200 people per hour
Operational temperature
From –5 C (-40 C with optional heating unit) to 40C
Humidity
Up to 95% with 25 C
Atmospheric pressure operation
From 84 to 106,7 hPa
Uninterrupted
24 hours
Reverse mode
Yes
Passage direction pictogram
Yes
Passage open / closed pictogram
Yes
Closed door mode
Yes
Open door mode
Yes
Autonomous mode
Yes
Managed through RS 232/RS 485
Yes
Anti-panic mode
Yes
Fare media options:
Manual control
Magnetic cards
Smart cards (contact / contactless)
Barcodes
Tokens
Smart tokens
PayPass / PayWave
Yes
