Escalator supervisor booth

The escalator supervisor's booth is compact, durable and has excellent vandal resistance. The booth is designed with all requirements for ensuring the safety of passengers on the escalator in mind; it has maximum safety glazing that does not block the view, a heating and ventilation system for operator comfort. The dimensions of the cabin allow it to be installed in the alignment of the escalator line without compromising the comfortable passage of passengers.

The control panel integrates with all types of escalators presented on a market. In accordance with the latest requirements, a radiation safety testing complex can be additionally located in the booth.

The modular architecture of the escalator control system provides the ability to quickly replace individual units, and also allows you to expand the functionality of the booth as needed without significant extra costs.

Main features
  • Number of workstations: 1
  • Maximum number of managed escalators: 4
Specifications
  • Weight (gross): 420 kg
  • Power: 220V
  • Protection rating: IP 20
  • Useful lifespan: 10 years
  • Operational environment: +5°C to +55°C

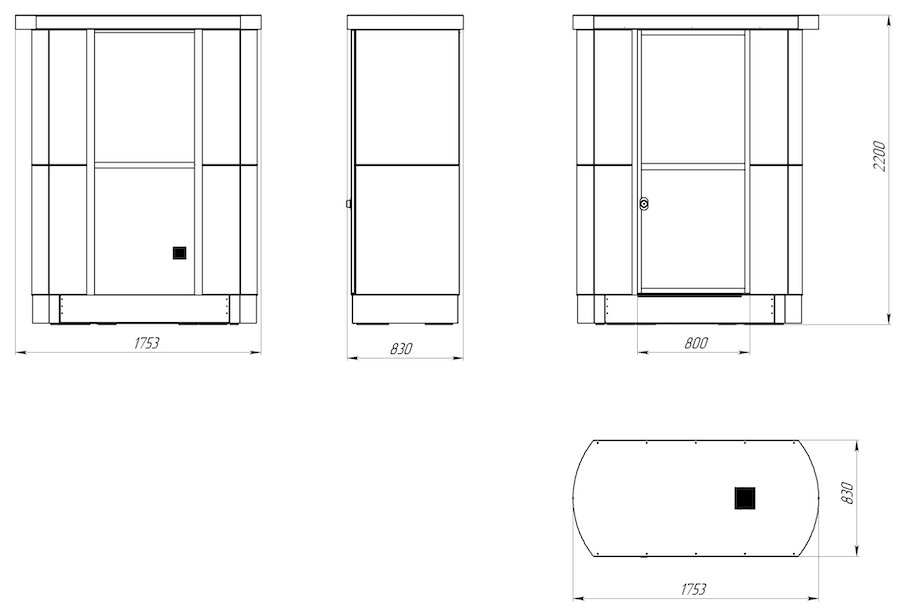

  • Dimensions: 1650х800х2200
Variants
  • Additional heating system
  • Additional forced ventilation system
  • Sliding door left / right
  • Stainless steel outer frame AISI 304
