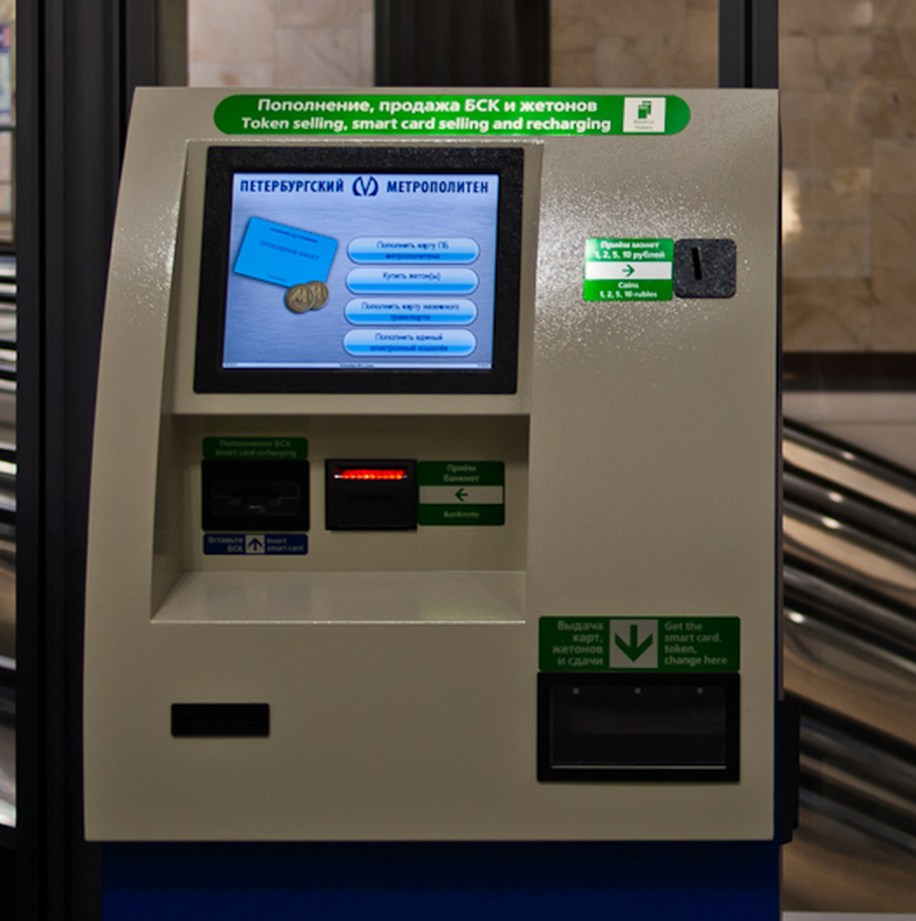

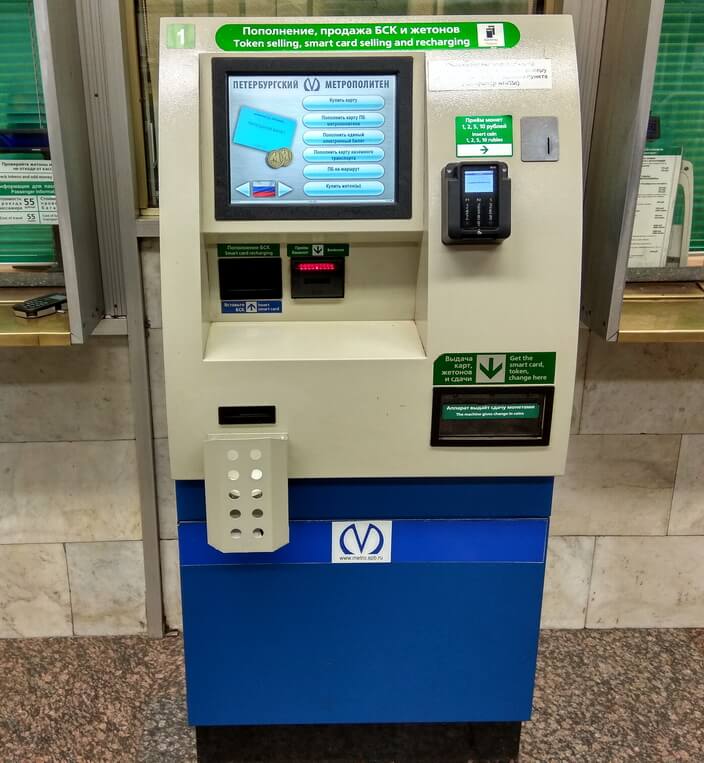

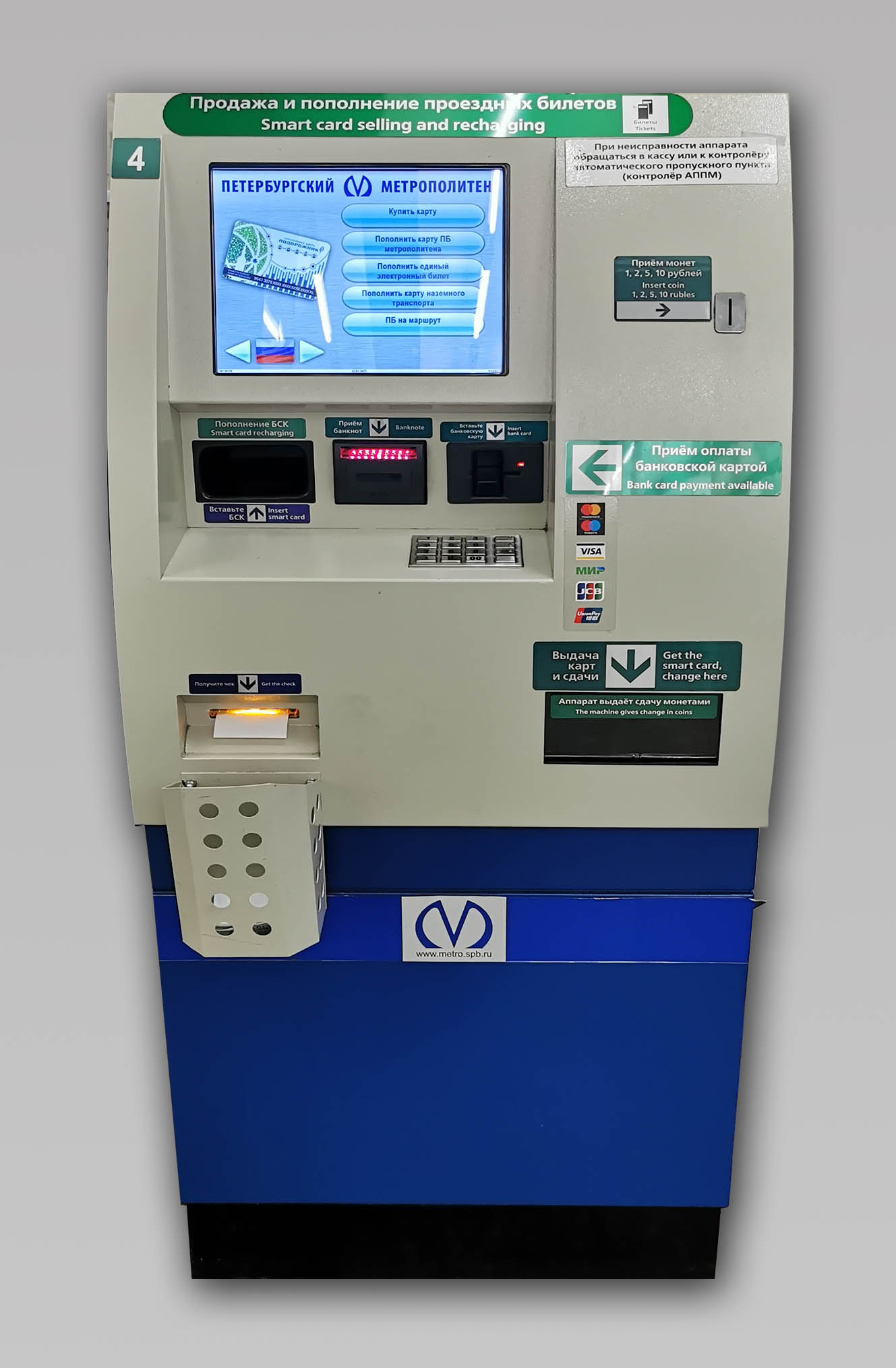

Modular ticket vending machine - (TVM-m)

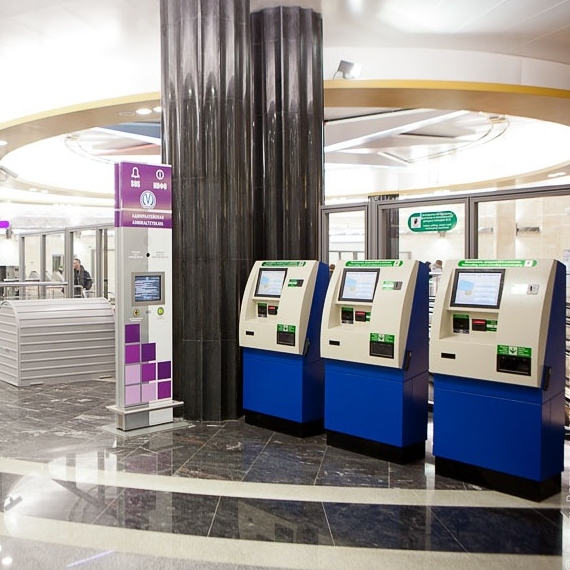

Modular ticket vending machine (TVM-m) allows public transport passengers including metro, railway and ground transport to purchase fare media and/or reload or renew an existing one. TVM-m works with nearly all standard types of fare media as well as smart tokens. It can be easily integrated into existing ticketing and payment systems. TVM-m can be located in closed or open stations, outdoor, indoor, at strategic points of passage.
Technical specification
- Protected against vandalism
- Large touch sensitive screen for user interaction
- Optional token/smart token vending
- Dimensions 470 х 750 х 1680 mm
- Working lifespan 10 years
- Accepts banknotes - 10, 50, 100, 500, 1000 rubles, coins 1, 2, 5 rubles
- 1000 banknote box capacity and 2000 coin box capacity
- Change given in coins by all denominations
- Compliant with contact-less standards ISO 14443 A, B
- EMV support
- Designed for fully autonomous continuous operation without ground staff supervision
- Protection index IP44
- Services no less than 300 passengers per hour
Variants
- fare media issue, only electronic payment means and issues receipts
- fare media issue, electronic payment means and issues receipts, accepts cash, change in cash/coins
- fare media issue, token issue, electronic payment means and issues receipts, accepts cash, change in cash/coins
